Lab 7: Kalman Filter

Drag and Mass Estimations

Approximating the robot as a first-order system using Newton's second law, factoring in linear drag $d$ and motor input $u$:

$$F = m\ddot{x} = -d\dot{x} + u$$

The dynamics in continuous state-space form ($\dot{x} = Ax + Bu$) with state vector $x = \begin{bmatrix} x \\ \dot{x} \end{bmatrix}$ are:

$$\begin{bmatrix} \dot{x} \\ \ddot{x} \end{bmatrix} = \begin{bmatrix} 0 & 1 \\ 0 & -\frac{d}{m} \end{bmatrix} \begin{bmatrix} x \\ \dot{x} \end{bmatrix} + \begin{bmatrix} 0 \\ \frac{1}{m} \end{bmatrix} u$$

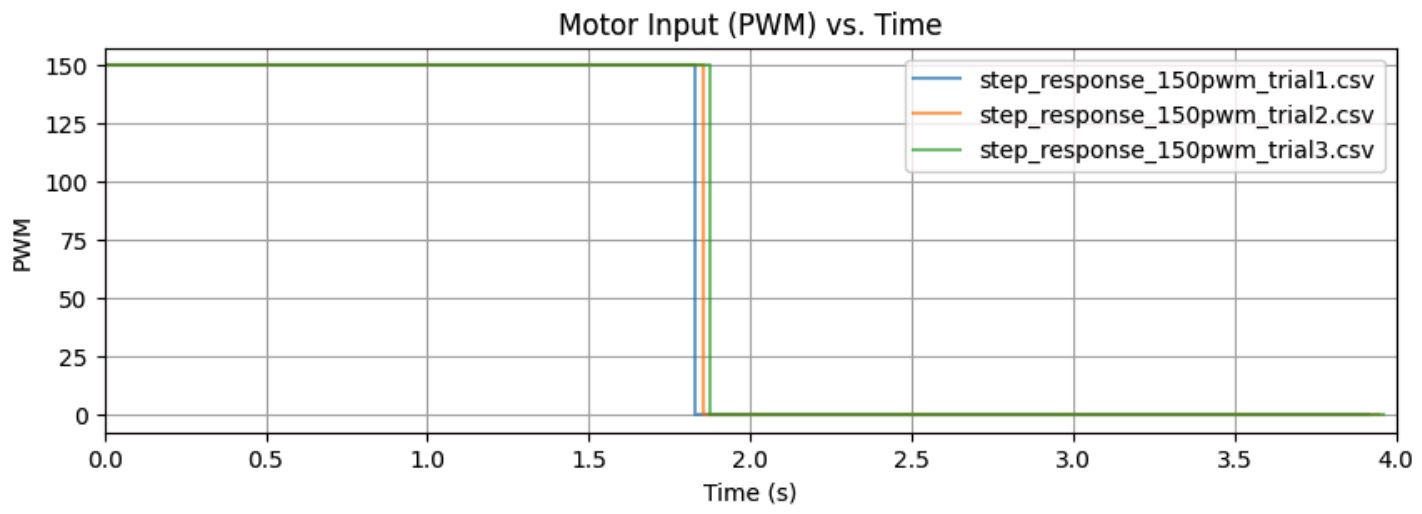

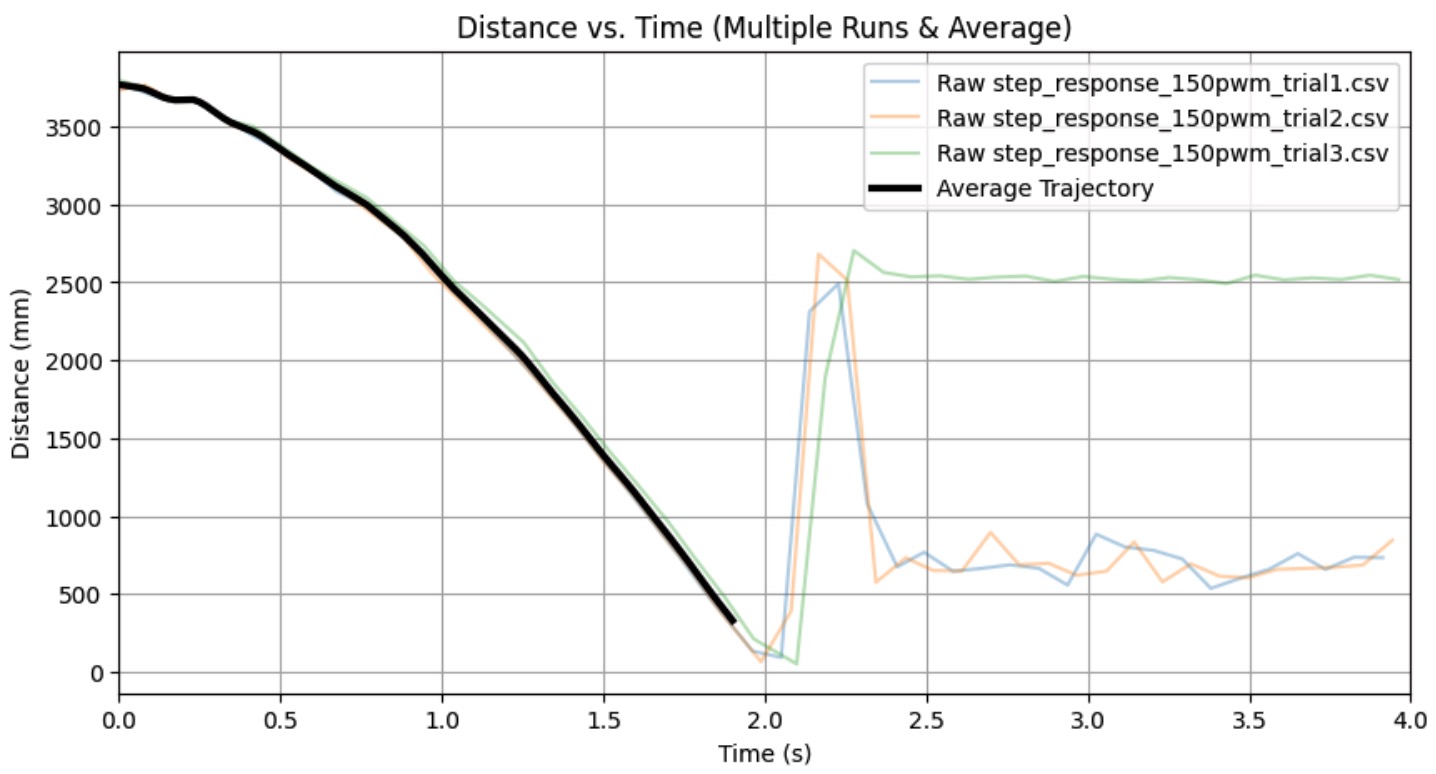

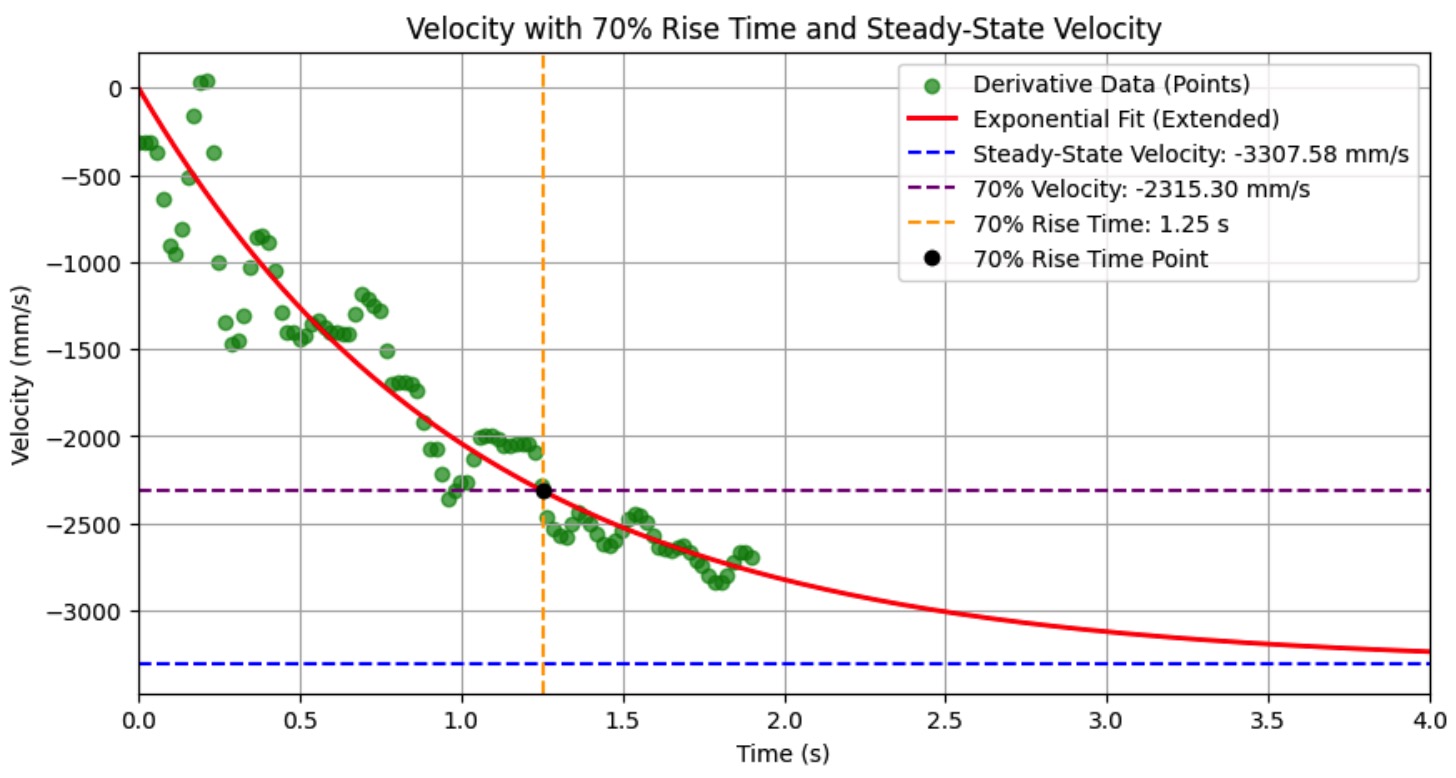

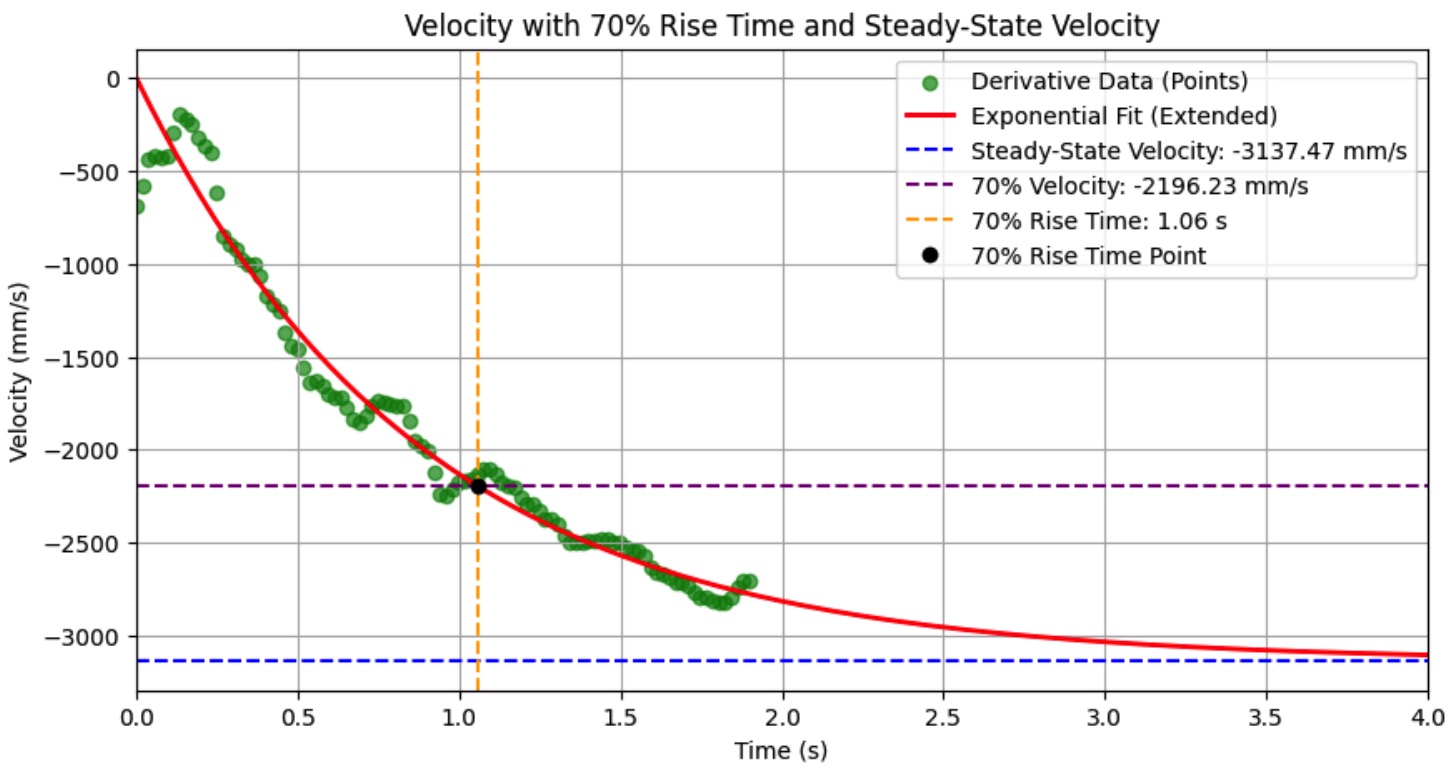

I recorded three open-loop step responses at 150 PWM to extract parameters $d$ and $m$. Averaging these trajectories mitigated non-Gaussian Time-of-Flight (ToF) noise. Fitting an exponential decay to this consensus trajectory yielded a 70% rise time ($t_{0.7} = 1.05$ s) and steady-state velocity ($V_{ss} = 2.45$ m/s).

Assuming a normalized unit step input ($u = 1$), the parameters are calculated as:

$$d = \frac{u_{ss}}{\dot{x}_{ss}} = \frac{1}{2.45} = 0.408$$

$$m = \frac{-d \cdot t_{0.7}}{\ln(0.3)} = \frac{-0.408 \cdot 1.05}{-1.204} = 0.356$$

Plugging these into our continuous $A$ and $B$ matrices yields:

$$A = \begin{bmatrix} 0 & 1 \\ 0 & -1.146 \end{bmatrix}, \quad B = \begin{bmatrix} 0 \\ 2.809 \end{bmatrix}$$

Measuring only distance, our observation matrix $C$ isolates the first state:

$$C = \begin{bmatrix} 1 & 0 \end{bmatrix}$$

Here is a video of one of the trajectories while I was collecting data for a step response:

Note: Subsequent trials with a closer braking distance yielded a slightly higher steady-state velocity, but my filter performed well with the initial dataset, so I proceeded with the originally calculated A and B matrices.

Kalman Python Simulation

System Timing and Discretization

The continuous model must be discretized using the fast onboard prediction loop (50 Hz, $\Delta t = 0.0209$ s) rather than the slower ToF sensor rate (~10 Hz, $\Delta t = 0.0985$ s) to prevent artificially accelerating the physics.

Discretizing via the first-order Taylor expansion ($A_d = I + A\Delta t$ and $B_d = B\Delta t$):

$$A_d = \begin{bmatrix} 1 & 0 \\ 0 & 1 \end{bmatrix} + \begin{bmatrix} 0 & 1 \\ 0 & -1.146 \end{bmatrix}(0.0209) = \begin{bmatrix} 1 & 0.0209 \\ 0 & 0.976 \end{bmatrix}$$

$$B_d = \begin{bmatrix} 0 \\ 2.809 \end{bmatrix}(0.0209) = \begin{bmatrix} 0 \\ 0.0587 \end{bmatrix}$$

import numpy as np

# Discretized Matrices
Ad = np.array([[1.0, 0.0209], [0.0, 0.976]])
Bd = np.array([[0.0], [0.0587]])
C = np.array([[1, 0]])

# Noise Covariances
sig_u = np.array([[10.0**2, 0], [0, 10.0**2]])
sig_z = np.array([[20.0**2]])

# Kalman Filter Simulation Function
def kalman_filter(mu, sigma, u, y_meas, has_new_data):
    # Predict Step
    mu_p = Ad.dot(mu) + Bd.dot(u)
    sigma_p = Ad.dot(sigma).dot(Ad.T) + sig_u

    if has_new_data:
        # Update Step
        y_m = y_meas - C.dot(mu_p)
        S = C.dot(sigma_p).dot(C.T) + sig_z
        K = sigma_p.dot(C.T).dot(np.linalg.inv(S))

        mu = mu_p + K.dot(y_m)
        sigma = (np.eye(2) - K.dot(C)).dot(sigma_p)
    else:
        mu = mu_p
        sigma = sigma_p

    return mu, sigma

Simulation Debugging

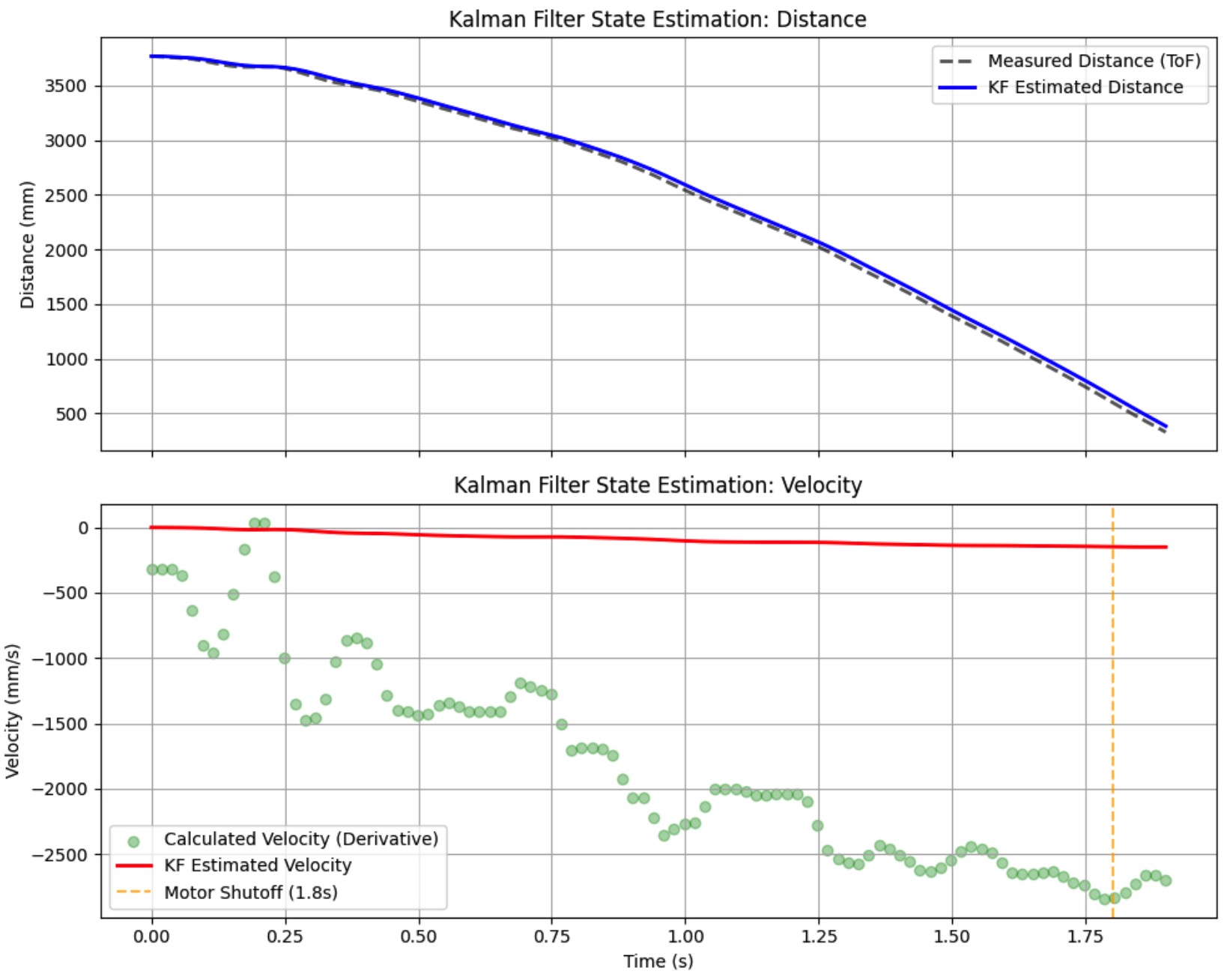

1. Unit Mismatch: The matrices initially predicted velocity in m/s, while raw data was plotted in mm/s, causing the accurate -3.1 m/s prediction to appear as a flat line on a -3000 mm/s scale. Recalculating matrices in millimeters fixed this.

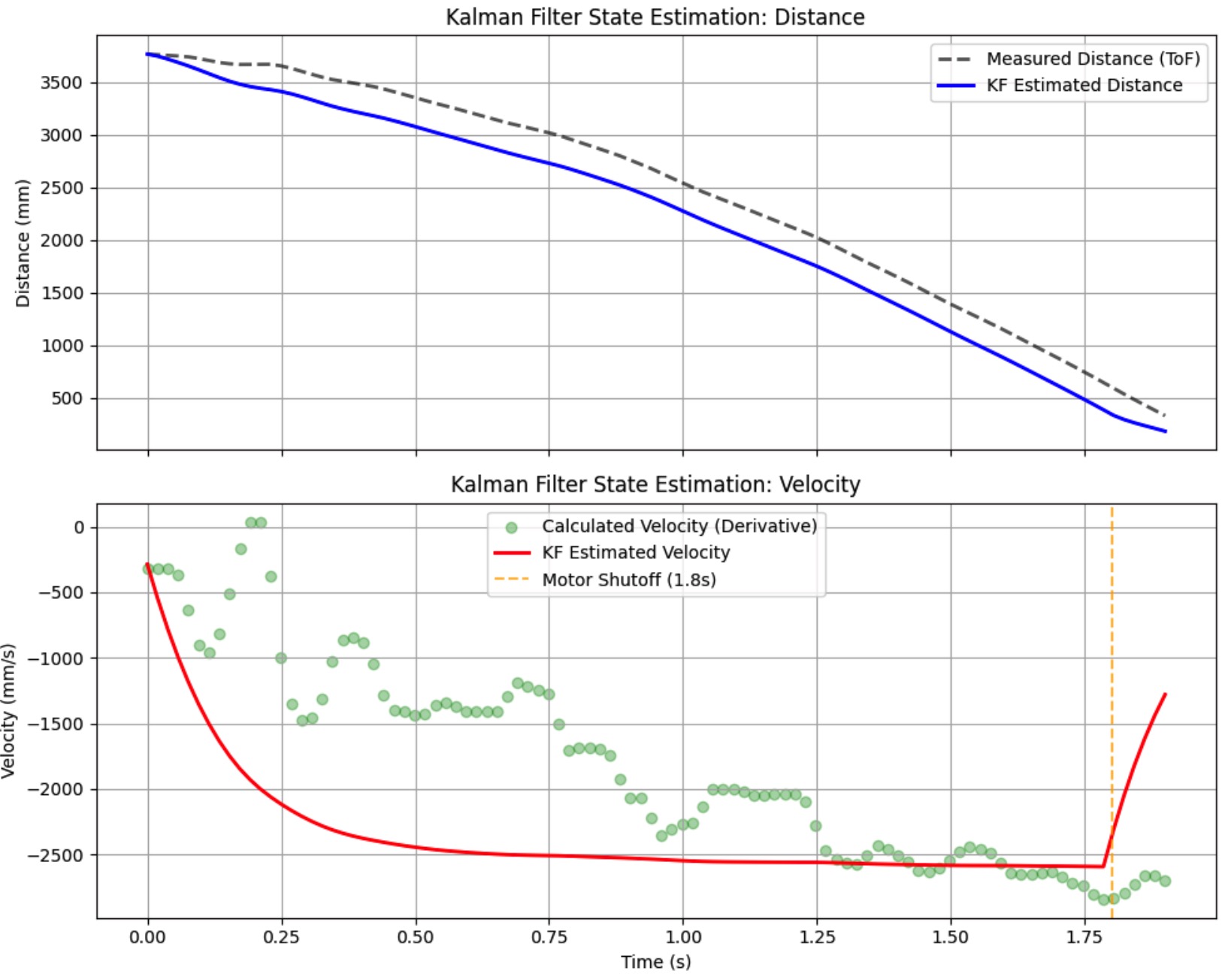

2. Discretization Mismatch: The simulated velocity reached steady-state too quickly (0.25s vs 1.06s) because $A_d$ and $B_d$ were mistakenly discretized using the 0.1s ToF rate instead of the simulation grid's interval. Using the correct $\Delta t = 0.0209$ s resolved the 5x artificial acceleration.

Sensor Noise Characterization and Final Tuning

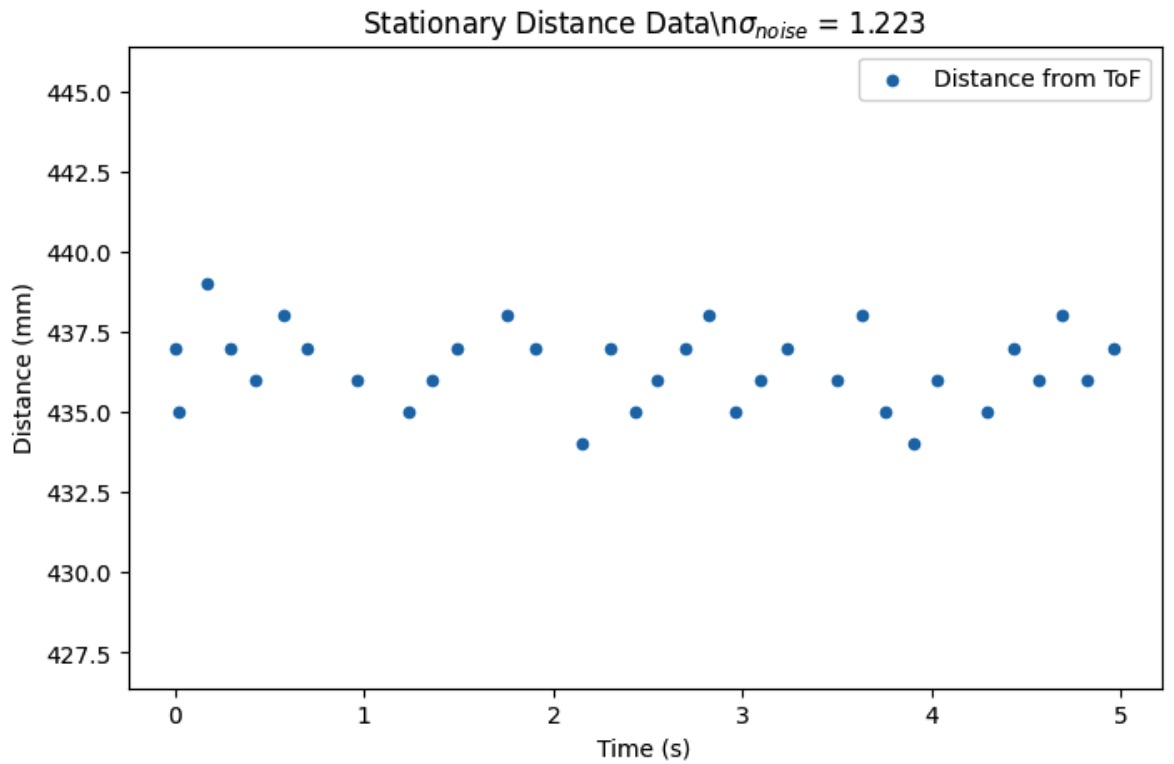

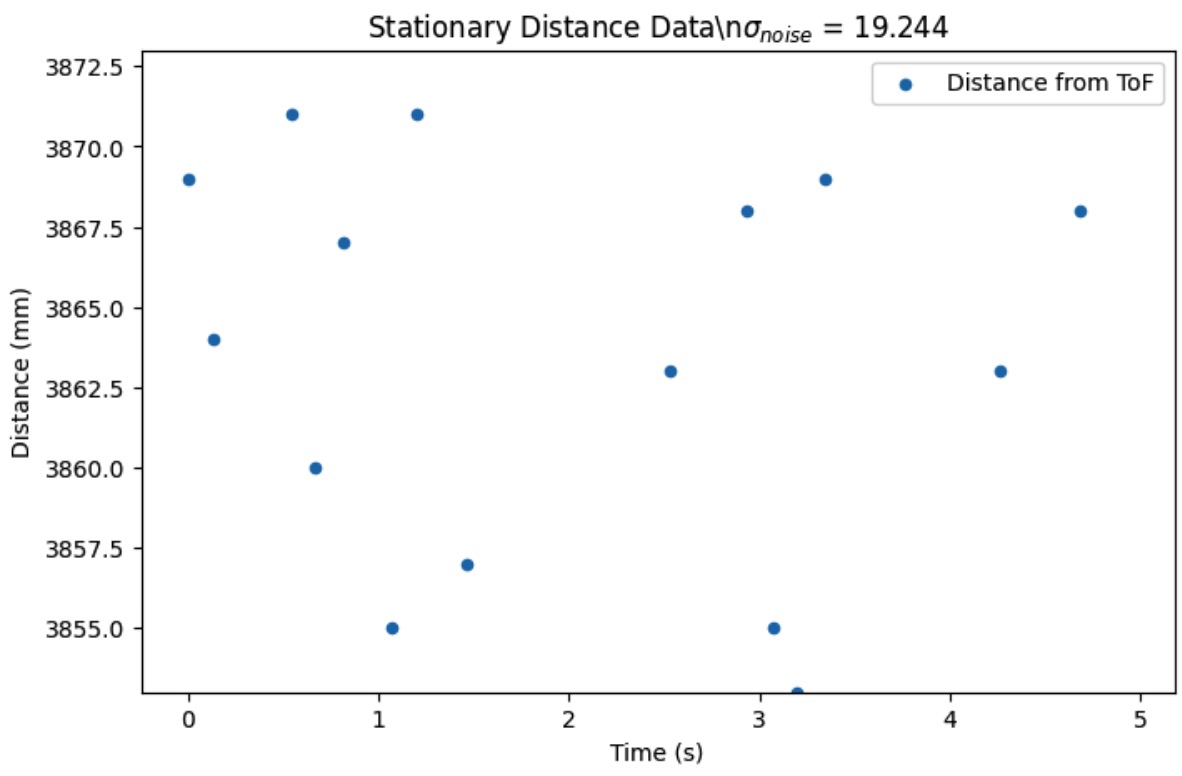

Stationary tests revealed distance-dependent noise: $\sigma_{start} \approx 19.2$ mm (at 3800 mm) and $\sigma_{target} \approx 1.2$ mm (at 430 mm).

To prevent violent derivative kick at high speeds, I tuned the measurement covariance ($\Sigma_z$) for the worst-case scenario.

$$ \Sigma_u = \begin{bmatrix} 100.0 & 0 \\ 0 & 100.0 \end{bmatrix}, \quad \Sigma_z = \begin{bmatrix} 400.0 \end{bmatrix} $$

In the Kalman Gain equation, setting $\Sigma_z = 400.0 \gg \Sigma_u = 100.0$ drastically shrinks the gain $K$. Consequently, the update equation ($\mu = \mu_p + K(y - C\mu_p)$) minimizes the impact of noisy sensor residuals. The system heavily trusts the physical prediction ($\mu_p$), allowing the velocity estimate to slice cleanly through the initial noise cloud.

Onboard Robot Kalman Integration

The BasicLinearAlgebra library was used to port the matrices directly to the Artemis board. The control loop was decoupled from the sensor, executing the prediction step on a strict 50 Hz timer and updating only when the has_new_data flag triggered.

#include <BasicLinearAlgebra.h>
using namespace BLA;

BLA::Matrix<2,2> Ad = {1.0, 0.0209, 0.0, 0.976};
BLA::Matrix<2,1> Bd = {0.0, 0.0587};
BLA::Matrix<1,2> C  = {1.0, 0.0};

BLA::Matrix<2,2> sig_u = {100.0, 0.0, 0.0, 100.0};
BLA::Matrix<1,1> sig_z = {400.0};

BLA::Matrix<2,1> mu = {0.0, 0.0};
BLA::Matrix<2,2> sigma = {10.0, 0.0, 0.0, 10.0};

void update_kalman(bool has_new_data, float measured_distance, float current_pwm) {
    BLA::Matrix<2,1> u = {current_pwm / 150.0f}; // Scale input to unit step
    BLA::Matrix<2,1> mu_p = Ad * mu + Bd * u;
    BLA::Matrix<2,2> sigma_p = Ad * sigma * ~Ad + sig_u;

    if (has_new_data) {
        BLA::Matrix<1,1> y = {measured_distance};
        BLA::Matrix<1,1> S = C * sigma_p * ~C + sig_z;
        BLA::Matrix<1,1> S_inv = S;
        Invert(S_inv);

        BLA::Matrix<2,1> K = sigma_p * ~C * S_inv;
        mu = mu_p + K * (y - C * mu_p);
        sigma = (Eye<2>() - K * C) * sigma_p;
    } else {
        mu = mu_p; sigma = sigma_p;
    }
}

void executeControl() {
    uint32_t now = micros();
    if (now - last_fast_loop_time >= 20000) { // 50Hz Fast Loop
        last_fast_loop_time = now;

        update_kalman(new_tof_data, dist_k, current_applied_pwm);
        new_tof_data = false;

        float kf_distance = mu(0,0);
        float raw_control_effort = computePID(linear_pid_setpoint, kf_distance);
        int actual_pwm = applyMotorSpeed(raw_control_effort);

        current_applied_pwm = actual_pwm;
    }
}

PID Tuning and Derivative Kick

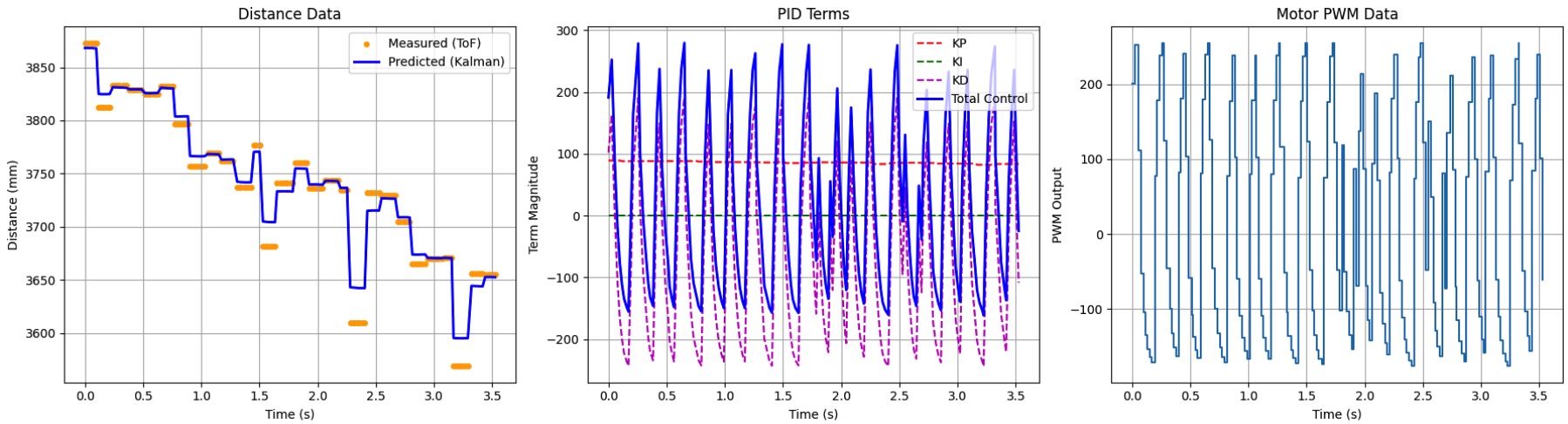

Phase 1: Timing Mismatch: Applying Lab 5 PD gains ($K_p = 0.025$, $K_d = 20000$) to the 50 Hz loop caused violent oscillations. Because the new $\Delta t$ (0.020s) was five times smaller than the old ToF interval (0.098s), the discrete derivative ($K_d \frac{de}{dt}$) effectively multiplied the derivative kick by 5.

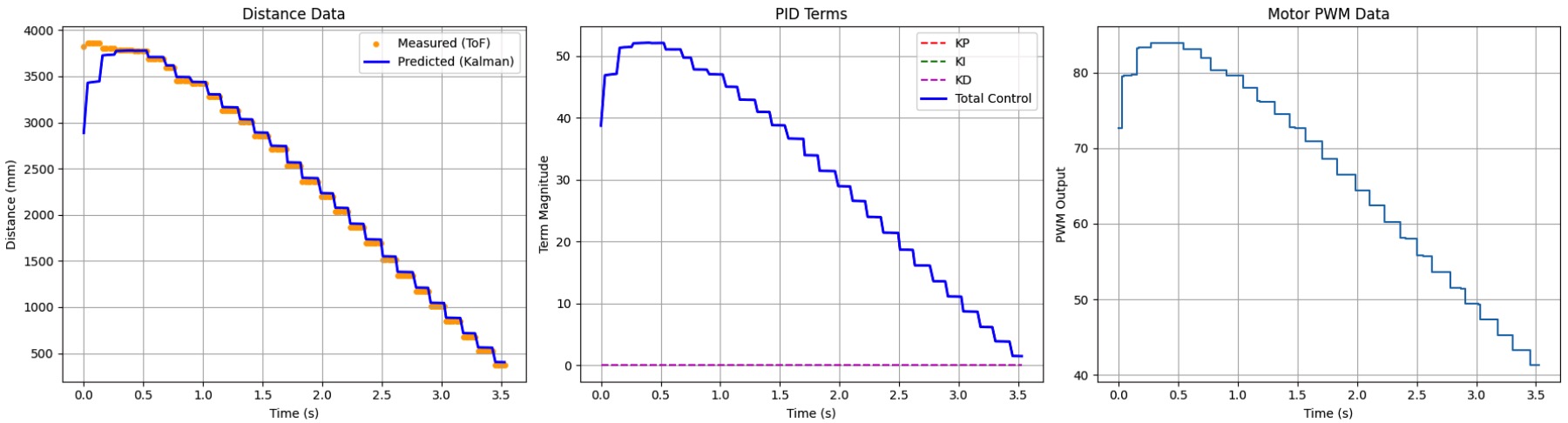

Phase 2: Coasting Baseline: Disabling the derivative term ($K_d = 0$) and using $K_p = 0.015$ eliminated oscillations, but without a derivative "brake," the robot coasted through the 304 mm target and crashed.

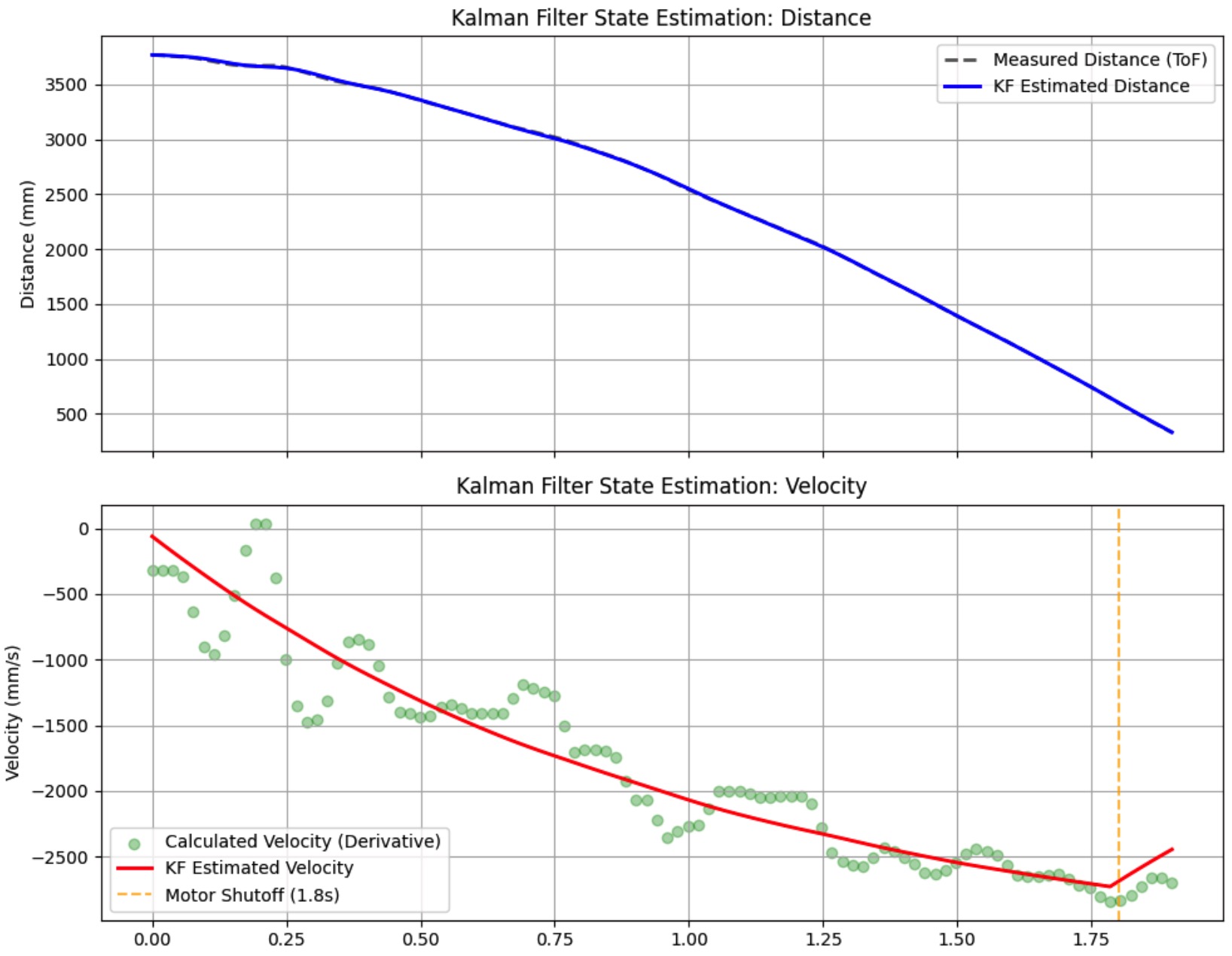

Phase 3: Kalman Velocity Control: To safely restore braking power, I substituted the Kalman Filter's smoothed velocity state ($\mu_1$) for the noisy discrete derivative calculation:

$$u(t) = K_p(x_{target} - \mu_0) - K_d(\mu_1)$$

This eliminated derivative chatter entirely. Approaching the 300 mm mark, $\mu_1$ applies a clean electronic braking force for a perfectly controlled stop.

Final Remark

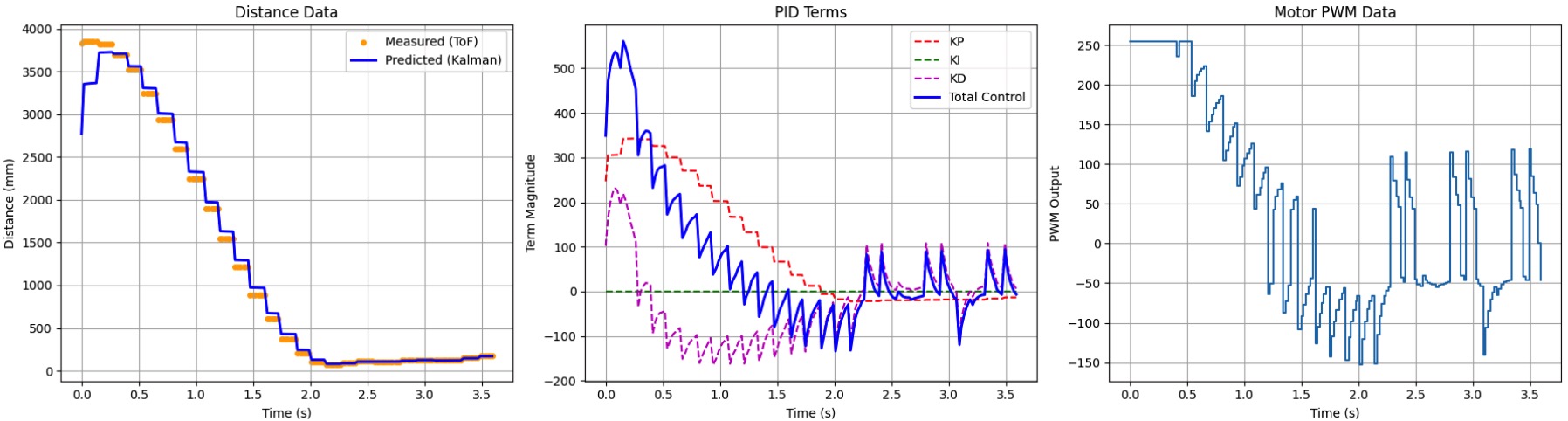

While implementation was challenging, the resulting performance was highly satisfying. I achieved rapid initial acceleration (starting at max 255 PWM and decreasing to 100 PWM within the first second), covering significant distance quickly before the filter seamlessly executed the braking maneuver.

Collaboration

I referred to Jack Long and Aidan McNay's pages for graphing techniques and Kalman Filter C++ architectures. I collaborated with Ananya Jajodia on collecting step response data, and utilized ChatGPT to assist with data visualization and report formatting.
